Cathodic Anodes Australasia #1 Manufacturer of Anodes for Cathodic Protection.
Cathodic Anodes Australasia is the most trusted anode manufacturer in Australia.
We have done this since 1984.
Our anodes protect billions of dollars worth of infrastructure around Australia, the South Pacific and South East Asia. We manufacture Industrial anodes for offshore oil rigs, FPSO facilities, mining, construction and pipelines as well as for the protection of infrastructure such as ports, wharves, sheet pile walls and desalination plants. Our anodes also protect boats, ships, yachts, marine motors, tanks and hotwater systems.
Inpection and Testing
A robust inspection and testing program is the key to ensuring that anodes will function effectively. For projects with multiple stages or inspection and testing, we offer a comprehensive Inspection and Test Plan, which clearly identifies the inspection hold points.
Cathodic Anodes Australasia
Our factory is the only purpose built, large scale anode manufacturing facility in Australia. Energy efficiency, water and waste management played a key role in the design of the factory and associated equipment. The layout was designed based on the principles of Lean Manufacturing, where the flow of work and minimal down time is integral to the operation of the factory.
Cost savings through energy, labour and waste efficiency gains are passed on to our customers.
Continuous improvement is the goal of each member of our staff. As part of our ISO9001 accreditation system we have a series of benchmarks across key company processes which are measured and reviewed. These processes are documented, periodically audited and reviewed as part of our continuous improvement program.
We choose Global Certification Pty Ltd as our ISO 9001 accreditation body.
Our Management manual is available on request.
Engineers, metallurgists and scientists from around the world have devoted considerable time and resources researching the best combination of elements to produce anodes that will offer effective Cathodic Protection. These alloys have been designated as internationally recognised standards. For an anode to work most effectively, they need to comply with these industry standards.
The most important part of our inspection and testing program is our Optical Emission Spectrometer, which is calibrated from a library of over 200 Certified Reference Material standards. This instrument allows us to ensure that the chemical composition of the anode complies with the appropriate Australian or international standard.
Technical drawings of our anodes ensure that dimensions and weights can be quickly and easily checked for accuracy.
Our internal procedures set a benchmark for weight, dimensional and visual inspection requirements. International standard NACE SP0387 forms the basis of our inspection and testing procedure.
TRACEABILITY/MARKING

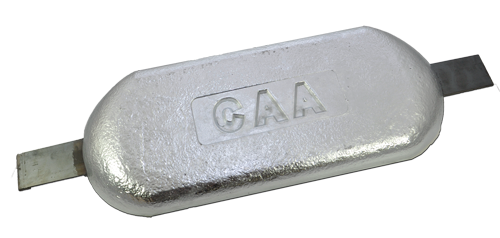

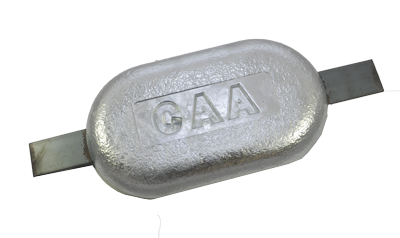

Our anodes are hard stamped with a heat/batch number (excludes small anodes where stamping is not possible).
This number is linked back to the spectrometer chemical analysis. This is a critical link in the quality control of anodes.
ANODE-TO-CORE RESISTANCE TESTING
The purpose of the anode-to-core resistance test is to check that there is minimal electrical resistance between the anode material and its steel core. We follow Australian standard AS2239 Annex C for testing anode-to-core resistance.
ELECTROCHEMICAL TESTING
Laboratory based electrochemical testing is an accelerated corrosion test, where the rate of corrosion is measured over a short period of time. This test, along with anode potential testing, gives an indication that the anode will corrode at the desired rate when in service.
We follow the DNV-RP-B401 standard, which offers the clearest guidelines for carrying out this test.
CERTIFICATES AND DOCUMENTATION
We provide certificates for all of our inspection and testing, along with any backup documentation such as ingot and steel certificates, blasting reports, coating certificates and calibration records. For projects which require substantial inspection and testing, we compile the documentation into a Manufacturers Data Report (MDR).
Let’s See What Some Of Our Clients Have To Say?
We love our clients and are fully dedicated to keeping their trust by offering amazing service and outstanding after sale support!
“Here at Seamaster Fishing Supplies we have been stocking and supplying anodes from Cathodic Anodes for several years now, and we consider them to be the highest quality anodes available in Australia. Seamaster largely supplies the multi-million dollar Port Lincoln tuna, prawn and rock lobster fleet; so there is a lot of confidence placed in Cathodic Anodes in our local region.”
Cathodic Anodes have been a first tier critical supplier for Orrcon Operations in Brisbane for well over 10 years. At every review we have optioned to continue sourcing our raw materials through Cathodic Anodes based on the unquestioned quality and exceptional customer service levels offered.We are happy to provide a testimonial for Cathodic Anodes as their team’s willingness to gain an understanding of our business shows their level of commitment.
“We place CAA amongst our top suppliers. Your company ticks all the boxes quality products at competitive prices, excellent stock fulfillment against orders, helpful staff, intelligent and correct paperwork, and a truly “can-do” attitude. All this combined with a great new catalogue, makes doing business with CAA a real pleasure. We look forward to continuing to grow our mutual business.”
“We have been working with Cathodic Anodes for over 12 years now and have always found their customer service and product quality to be exceptional. Many thanks to Ross and the team for their efforts, McCoy Engineering.”
“I have been dealing with the team at CAA for over a decade with enquiries ranging from small every day anodes to some large custom make projects. The products are always of the best quality and delivered on time. Additionally, the team are always professional and a pleasure to deal with.”
