Imperial Shaft Propeller Nuts
| Part Number | Shaft Dia - inches | Prop nut thread size | TPI | Anode only Dimensions | Anode Weight | |||
|---|---|---|---|---|---|---|---|---|
| Anode only | A | B | C | D | ||||
| CDZPN-A | 3/4" | 1/2" UNC | 13 | 6 | 38 | 32 | 23 | 90g |
| CDZPN-B | 7/8" | 5/8" UNC | 11 | 6 | 52 | 42 | 26 | 227g |
| CDZPN-C | 1" | 3/4" UNC | 10 | 8 | 68 | 50 | 30 | 450g |
| CDZPN-D | 1 1/4" | 7/8" UNC | 9 | 8 | 75 | 58 | 35 | 680g |
| CDZPN-E | 1 3/8" | 1" UNC | 8 | 9 | 80 | 63 | 39 | 800g |
| CDZPN-F | 1 1/2" | 1 1/8" UNC | 7 | 9 | 84 | 70 | 42 | 910g |
| CDZPN-G | 1 3/4" | 1 1/4" UNC | 7 | 9 | 86 | 79 | 46 | 1.30kg |
| CDZPN-H | 2" | 1 1/2" UNC | 6 | 9 | 100 | 85 | 56 | 1.50kg |
 |  |
|||||||

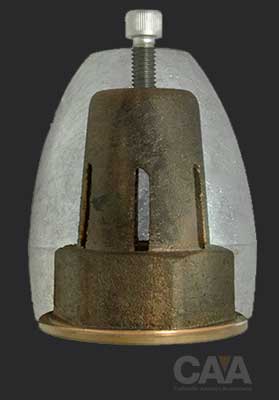

| Propeller Anode and Bronze Insert | Bronze Insert Only | |||||||
 | Part Number | Weight |  | Part Number | Weight | SHCS** | ||
| CDZPN-AA | 155g | CDZPN-AAA | 65g | |||||
| CDZPN-BB | 370g | CDZPN-BBB | 146g | |||||
| CDZPN-CC UNC | 700g | CDZPN-CCC | 254g | |||||
| CDZPN-CC-UNF | 700g | CDZPN-CCC-UNF | 254g | |||||
| CDZPN-DD | 1.00kg | CDZPN-DDD | 320g | |||||
| CDZPN-EE | 1.10kg | CDZPN-EEE | 360g | |||||
| CDZPN-FF | 1.50kg | CDZPN-FFF | 540g | |||||
| CDZPN-GG | 2.10kg | CDZPN-GGG | 770g | 3/8" unc | ||||
| CDZPN-HH | 2.60kg | CDZPN-HHH | 1.10kg | 3/8" unc | ||||
